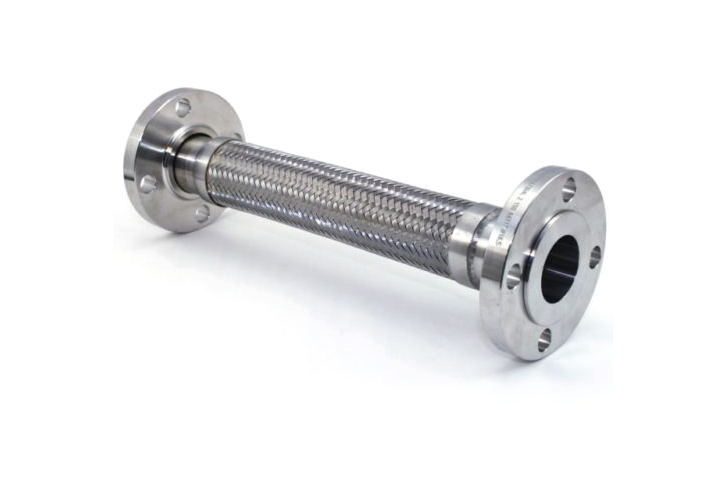

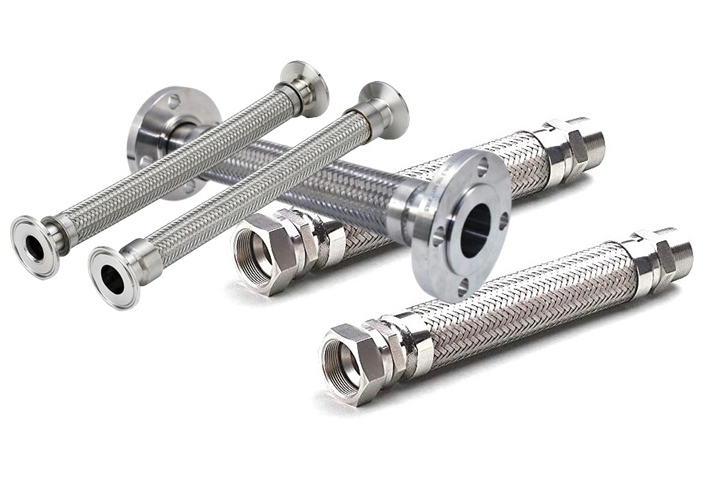

Goraflex is engaged in providing of 2-Ply hoses with single or multi-ply braids for special & specific applications, where high temperature and high pressure is required. The pressure ratings of class B flexibility (Goraflex B-Flex) hose are given in the following table
| Nominal Size | Single Braid | Double Braid | |||||||
|---|---|---|---|---|---|---|---|---|---|
| WP | T.P. | MIN. BEND RADIUS | WP | T.P. | MIN. BEND RADIUS | ||||
| INCH | MM | BAR | BAR | STATIC (MM) | DYNAMIC (MM) | BAR | BAR | STATIC (MM) | DYNAMIC (MM) |
| ¼” | 6 | 80 | 120 | 30 | 100 | 140 | 210 | 40 | 120 |
| 3/8” | 10 | 70 | 105 | 40 | 150 | 120 | 180 | 50 | 160 |
| ½” | 12 | 64 | 96 | 40 | 200 | 100 | 150 | 60 | 220 |
| 5/8” | 16 | 60 | 90 | 50 | 200 | 90 | 135 | 60 | 220 |
| ¾” | 20 | 50 | 75 | 70 | 200 | 90 | 135 | 80 | 250 |
| 1” | 25 | 50 | 75 | 90 | 200 | 80 | 120 | 100 | 260 |
| 1.1/4” | 32 | 40 | 60 | 110 | 250 | 60 | 90 | 120 | 350 |
| 1.1/2” | 40 | 32 | 50 | 130 | 260 | 50 | 75 | 160 | 400 |
| 2” | 50 | 26 | 40 | 175 | 350 | 40 | 60 | 180 | 410 |
| 2.1/2” | 65 | 20 | 30 | 200 | 410 | 32 | 50 | 200 | 450 |
| 3” | 80 | 16 | 25 | 210 | 450 | 25 | 40 | 220 | 560 |
| 4” | 100 | 14 | 21 | 230 | 560 | 20 | 30 | 260 | 660 |
| 5” | 125 | 12 | 18 | 280 | 660 | 18 | 30 | 300 | 815 |
| 6” | 150 | 10 | 15 | 320 | 815 | 15 | 25 | 420 | 1015 |
| 8” | 200 | 10 | 15 | 440 | 1015 | 15 | 25 | 540 | 1220 |
| 10” | 250 | 8 | 12 | 560 | 1220 | 12 | 20 | 620 | 1420 |
| 12” | 300 | 6 | 9 | 660 | 1420 | 9 | 15 | 750 | 1650 |
Flanges are crucial components in various industries, playing a vital role in connecting pipes, valves, and other equipment.
Understanding their types, functions, and applications is essential for engineers, technicians, and anyone involved in piping systems. In this guide, we'll delve into the world of flanges, exploring their designs, materials, installation methods, and maintenance procedures.
Let's start by fleshing out each section with detailed information and explanations. Feel free to connect with us
